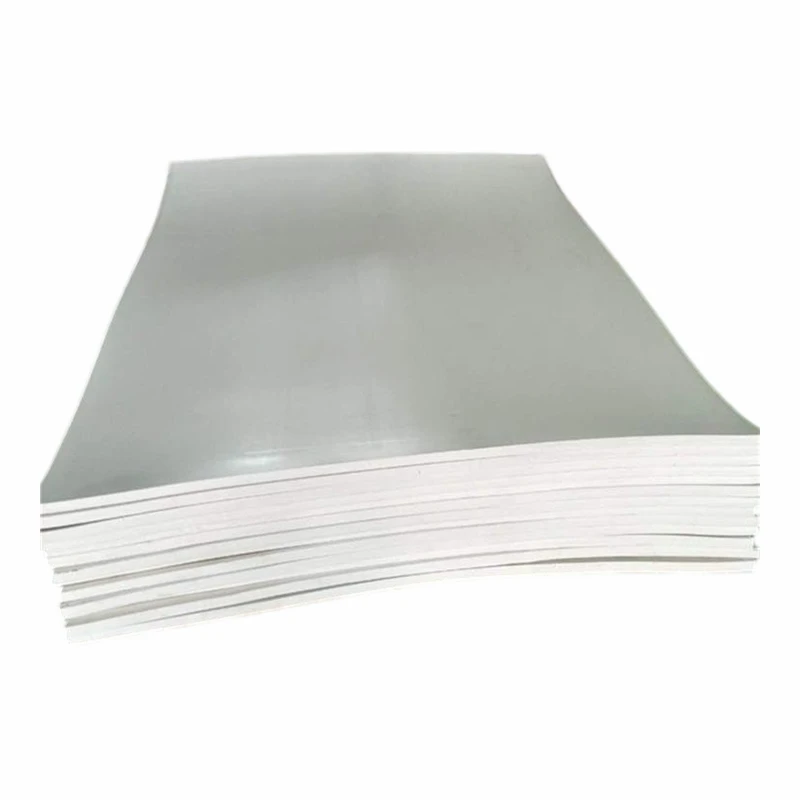

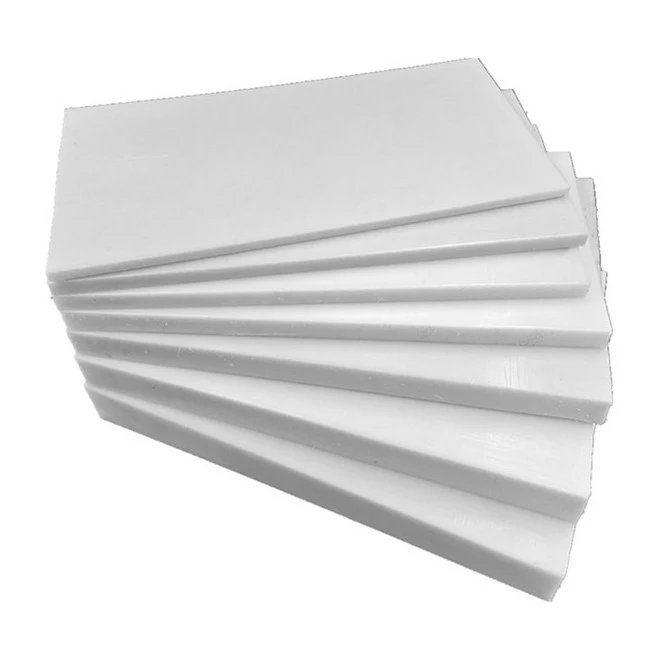

Teflon Sheet 1mm Thick

We make the teflon sheet 1mm thick with a tight thickness tolerance of ±0.05 mm. This high precision is good for fine processing jobs. The product works well for electronic device insulating gaskets, mold release films, heat press insulation pads, or high frequency circuit board bases. Because it is only 1mm thick, you can cut it with scissors. Its surface does not stick to tape, glue, or food waste. So cleaning is easy. Our company Anhui Ziyan Fiber Products Technology Co., Ltd. is a small but skilled micro enterprise. We test every batch of product with a micrometer. We take 10 points on each sheet. The difference between the highest and lowest point must be less than 0.1 mm. The average error stays within ±0.05 mm.

The product has a density of 2.1 to 2.3 g/cm³. Its tensile strength is at least 20 MPa. Even at only 1mm thick, it can handle a good amount of pulling force. The elongation at break is at least 200%. A thin sheet bends more easily than a thick one. You can shape it in many ways. The temperature range is from -180°C up to 260°C. One electronics factory used our teflon sheet 1mm thick as a spacer between high temperature wires. Their old material softened and deformed at 200°C. Our Teflon sheet stayed flat even at 260°C. The client's engineering verification report confirmed this. We can laser cut the product into special shapes based on your drawings. We support small sample runs and large scale production.

Our workshop has three fully automatic lines. We use a calendering process to make ultra thin sheets. This gives very even thickness. We make 3 to 5 tons of Teflon products each day. Our yearly capacity is about 1500 tons. Our raw material storage is dust and moisture proof. All PTFE materials sit in a constant temperature and humidity room. You can choose different surface treatments. For example, single side activation helps gluing, or double side smooth finish. We offer one-on-one pre-sale technical service and free samples. For foreign agents, the teflon sheet 1mm thick has large volume use and wide applications. Our high thickness accuracy and competitive price make it a good import replacement.
